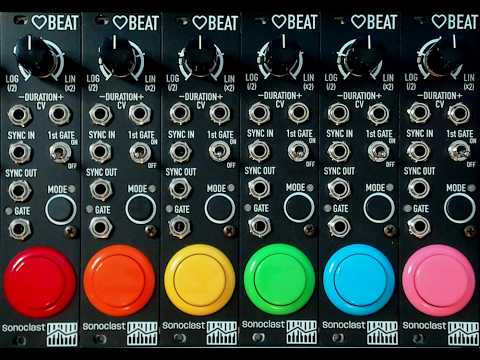

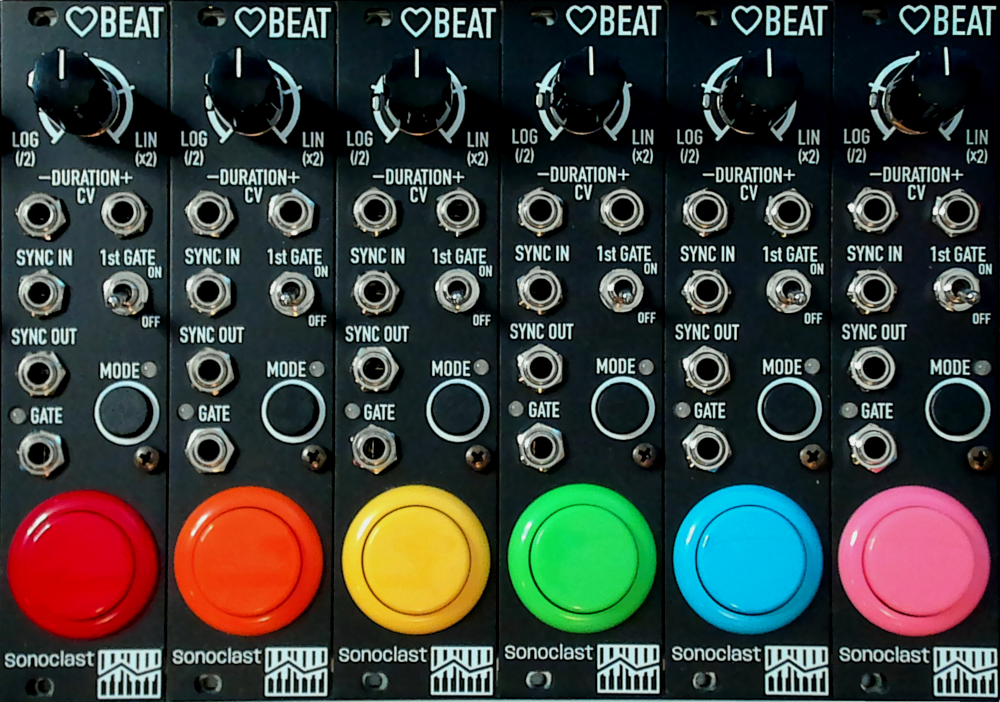

Heartbeat Eurorack Module

The Heartbeat is a eurorack module designed around a high quality arcade button. Use the button to finger drum or to program a rhythmic loop. Use the Duration CV to modulate parameters in other modules according to the rhythmic loop.

Features and Specifications

• Record and play a rhythmic gate loop composed of up to 250 gates at a resolution of 10 microseconds.
• Adjust the tempo of the gate loop across a range of half as fast up to twice as fast.
• Use Duration CV--voltages that correspond to the durations between beats--to modulate parameters in other modules.
• Mute the gate loop, and play the arcade button as a live gate source.
• 6hp wide. 30mm deep.
• Requires 60mA on the +12V rail and 30mA on the -12V rail. Powered via a standard 10-pin eurorack power cable.

More details here.
